Competitive Advantage:
1、Software and touch screen support the resin locking function. 2、Time lock and offline unlocking can be realized without Ukey.
3、Directly print SLC files, support slicing files like Jewel CAD, Magics, Rhino etc.
4、Z-axis imported high-precision double track guide modules
5、Automatic support function, set freely the parameters of thickness and angles of the support.
6. Compared with LCD printers, without the risk of supports broke LCD screen.
Parameters:

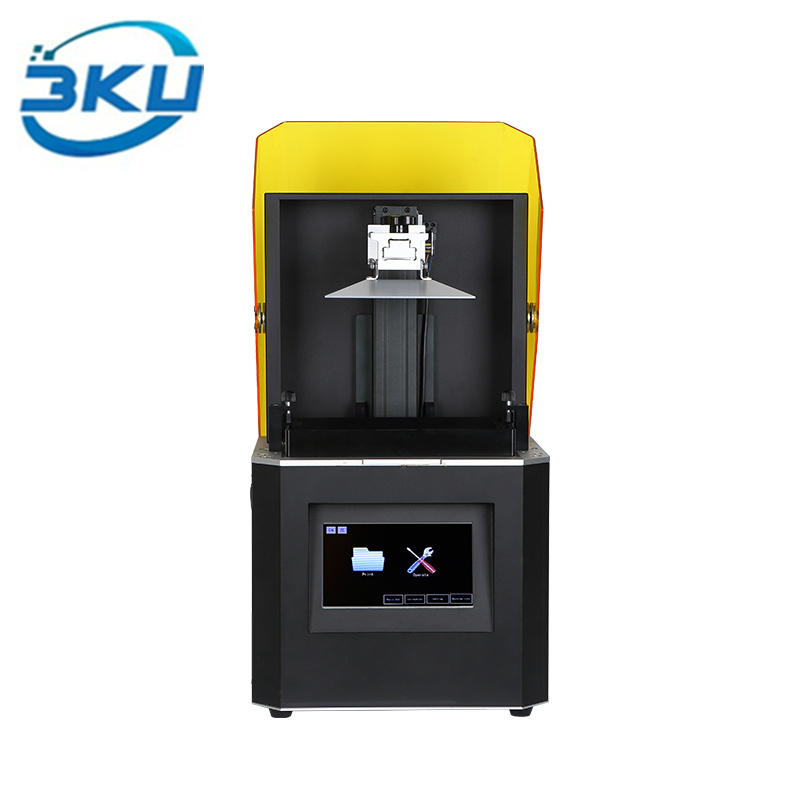

Model: Prism S3 Technics: Advanced DLP Technology
Machine Size: 320 x 300 x 750 mm
Building Size: 144x81x120mm
Printing Resolution: Horizontal pixel 55um, vertical 20um
Physical Resolution: 2560x1440 Pixels
Layer thickness: 0.02-0.1mm
Building speed: 10-40mm/h
Light Source: Industrial UV LED, lifetime 15000 hours
After-processing: UV solidify
Resin tank : FEP release film, Aluminum Alloy Frame
Software: PRISM MASTER V2.0
Supports: Automatic and manual support generation
Input file: STL / OBJ / SLC
Touch Screen: Yes, 7 inches Touch Screen
Monitor
Connectivity: USB driver, multi-printers control
Offline print capability: Yes
Platform leveling: Leveling is finished before shipping
Resins: 3KU resin, all brand 405nm resin compatible
System requirement: Windows, Mac
Power Output: DC 12V
Input: 100-240V 50-60Hz
Regular Warranty: one year
