Features:

1. Applicable ceramic materials: silicon oxide\alumina\silicon nitride\silicon carbide\zirconia\aluminum nitride\hydroxyapatite\tricalcium phosphate\biological glass\art ceramics.

2. It is suitable for formula development and batch printing of slurry materials, and the printing materials are required to have certain fluidity.

3. At least 500-1000 ML materials need to be prepared for each printing.

4. Compared with the pull-up type, the top-down type printing has no problem of release, and can print very fine and fragile models.

Competitive Advantage:

1. Suitable Projector modes: 405nm and 385nm.

2. For material testing, we created the unique testing function. No complex operations are required. It supports single-layer exposure of specified models. The parameters can be modified directly on the touch screen, and a set of curing parameters can be tested in one minute. Simple models can be printed with just a few milliliters to test the properties.

3. It supports SLC file, support multi-layer thick files. And data sliced by JewCad, Chitubox, Mange, Magics amd other softwares.

4. Scrapers: two kinds, vacuum adsorption scraper and up-and-down scraper. Printing models: support scraper mode and scraper-less mode for continuous molding.

5. The projector can move up and down on the track, and can modulate a variety of precision and printing formats as need, achieving an adjustment of 20%. Such as 50um 96x54mm printing format can adjust to 40um 73x43mm formats or 60um 115x64mm formats.

6. Equiped with various tanks with different sizes. Users can customize the tank.

Parameters:

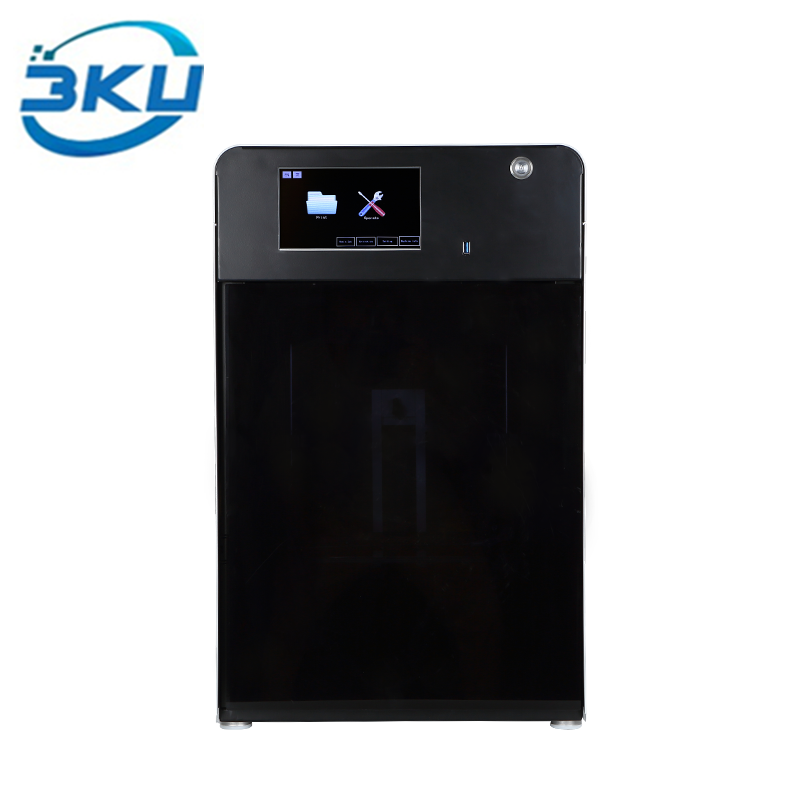

Model: Prism XP100

Technology: TI DLP Technology

Resolution: 1920*1080

Support files: Pr3  SLC

Forming Size: 96*54*100mm   /120x70x100mm / 140x80x100mm

Pixels Resolution:  50um  / 62.5um/ 70um

 Print Resolution:  25um

Layer Thickness: 0.02 – 0.1mm   (Z axis Reposition Resolution 0.01mm)

Printing Platform: Magnetic detachable platform

Paving System: Adjustable negative pressure scraper

Tank capacity: 1 liter (printing height 10mm) / 5 liters (printing height 100mm)

Light Source: Imported

Power: 200-240VAC 50/60HZ  power <150w

Machine Size: 400mm*300mm*750mm

Weight: NW: 20KG    GW: 40KG (including box)

Print Method: off-print, or by USB
