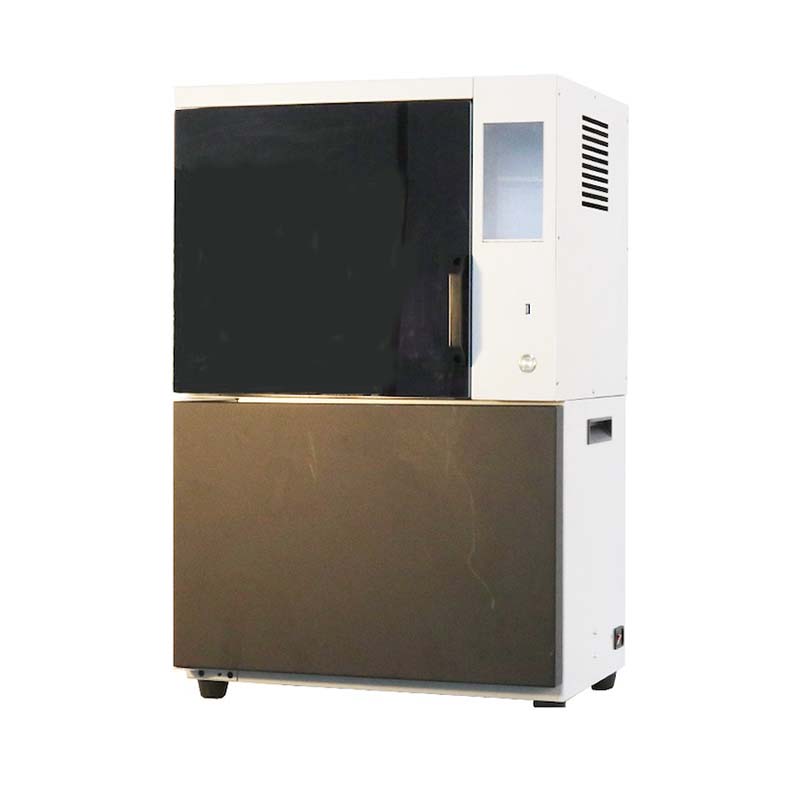

Double Tanks Top-down Ceramic Paste 3d Printer DLP 3d Printer
2024-03-28
Introduction:

1. Applicable ceramic materials: silicon oxide\alumina\silicon nitride\silicon carbide\zirconia\aluminum nitride\hydroxyapatite\tricalcium phosphate\biological glass\art ceramics.
2. It is suitable for the research and development and batch printing of high solid content paste materials.
3. The printing material is less, about a dozen ml can be used for testing.
4. The top-down printing method has no release problem, and can print materials with poor penetration or relatively fragile materials.

Parameters:

Model PT100

Molding Technology TI DLP UV Projector

Light Source 405nm uv light

Maximum energy density Low power : 45mw/cm2   /   high power: 90mw/cm2

Light Resolution 1920x1080p

Building Size 96x54x100mm

Physical Resolution 50μm

Z axis leveling resolution 2μm

Layer thickness 10-100um

Scraper adjustment resolution 10μm

Feeding Method Air pressure assisted peristaltic pump feeding system

Minimum Printing Test Materials 10ml

Rank of printing solid content 30%wt -90%wt

Machine Size N.W. :50KG         Size: 900x600x400mm

Power Supply 220v  100W
